16kWh genixgreen lithium ion battery
Price available on request

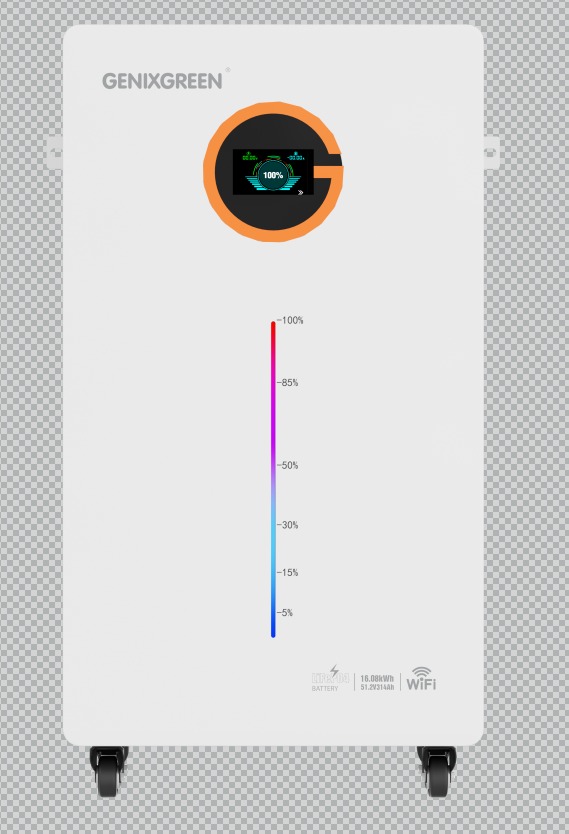

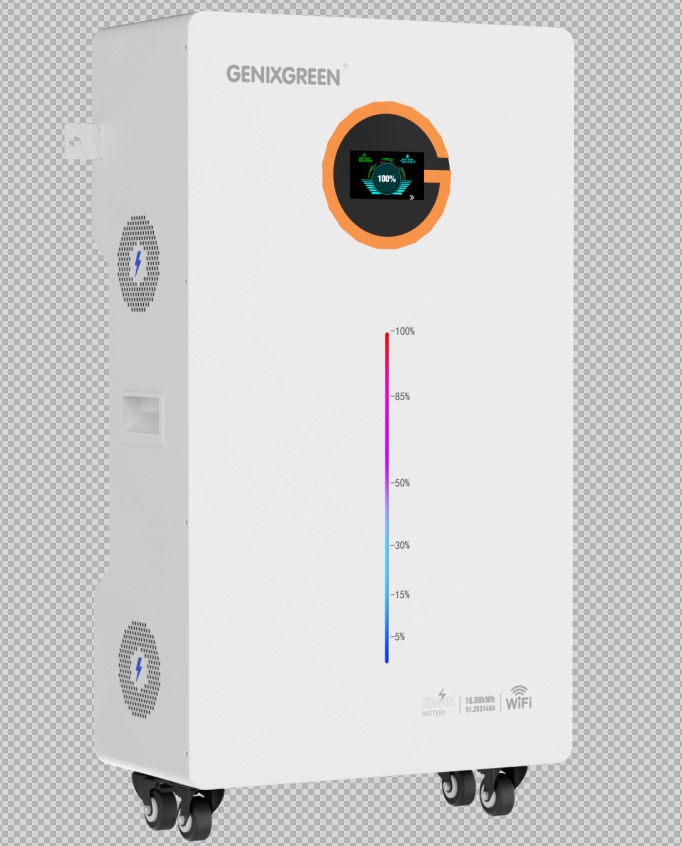

The Genixgreen 16kWh LiFePO4 battery (such as models ES-BOX12F MAX+ and ES-BOX36 MAX) is a high-capacity energy storage unit built for residential and commercial solar systems
Key Specifications
Nominal Energy: 16.08 kWh
Nominal Voltage: 51.2 V
Capacity: 314 Ah
Battery Chemistry: Grade-A LiFePO₄ (LFP) cells
Cycle Life: 6000+ to 8000+ cycles (at 80% DoD)
Discharge/Charge: 200 A continuous discharge, 100A–314A depending on model spec
Scalability: Supports parallel connection of up to 16 units
Communication: RS485, CAN, USB, RS232, and built-in Wi-Fi / Bluetooth (compatible with the GENIXGREEN Cloud App)
Inverter Compatibility: Works with hybrid brands like Deye, Growatt, Luxpower, Victron, and GoodWe.
Design & Protection: Floor-standing with wheels or wall-mounted options, smart BMS, LCD screen, and IP65/IP20 ratings depending on the specific sub-model variant.
Warranty: Typically 10 years
