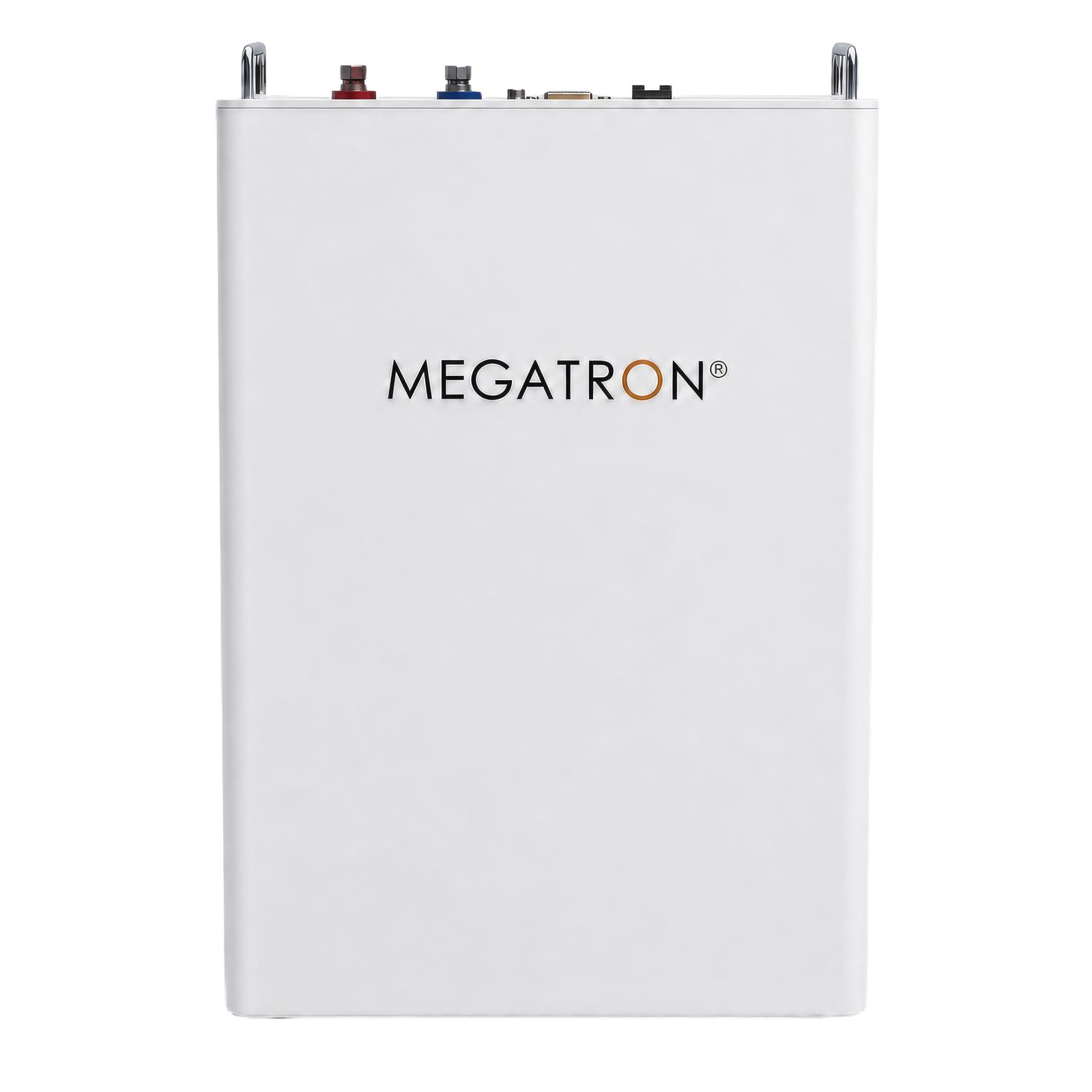

The Megatron 5.12kWh LiFePO4 Lithium Battery (Model: MEG-BATT-1) is a 51.2V 100Ah energy storage solution engineered for residential and commercial solar backup systems.

Key Specifications

• Nominal Capacity: 5.12 kWh

• Usable Capacity: 4.86 kWh (assuming a 95% depth of discharge)

• Nominal Voltage: 51.2 V (working range 43.2V–58.4Vdc)

• Battery Chemistry: Lithium Iron Phosphate (LiFePO4 / LFP 16S)

• Cycle Life: 6,000+ cycles

• Maximum Charge / Discharge: 100A max charge, 150A max discharge

• Communication Interfaces: CAN, RS485, RS232, and dry contact

• Scalability: Parallel expansion support up to 16 modules (roughly 81.92 kWh total capacity)

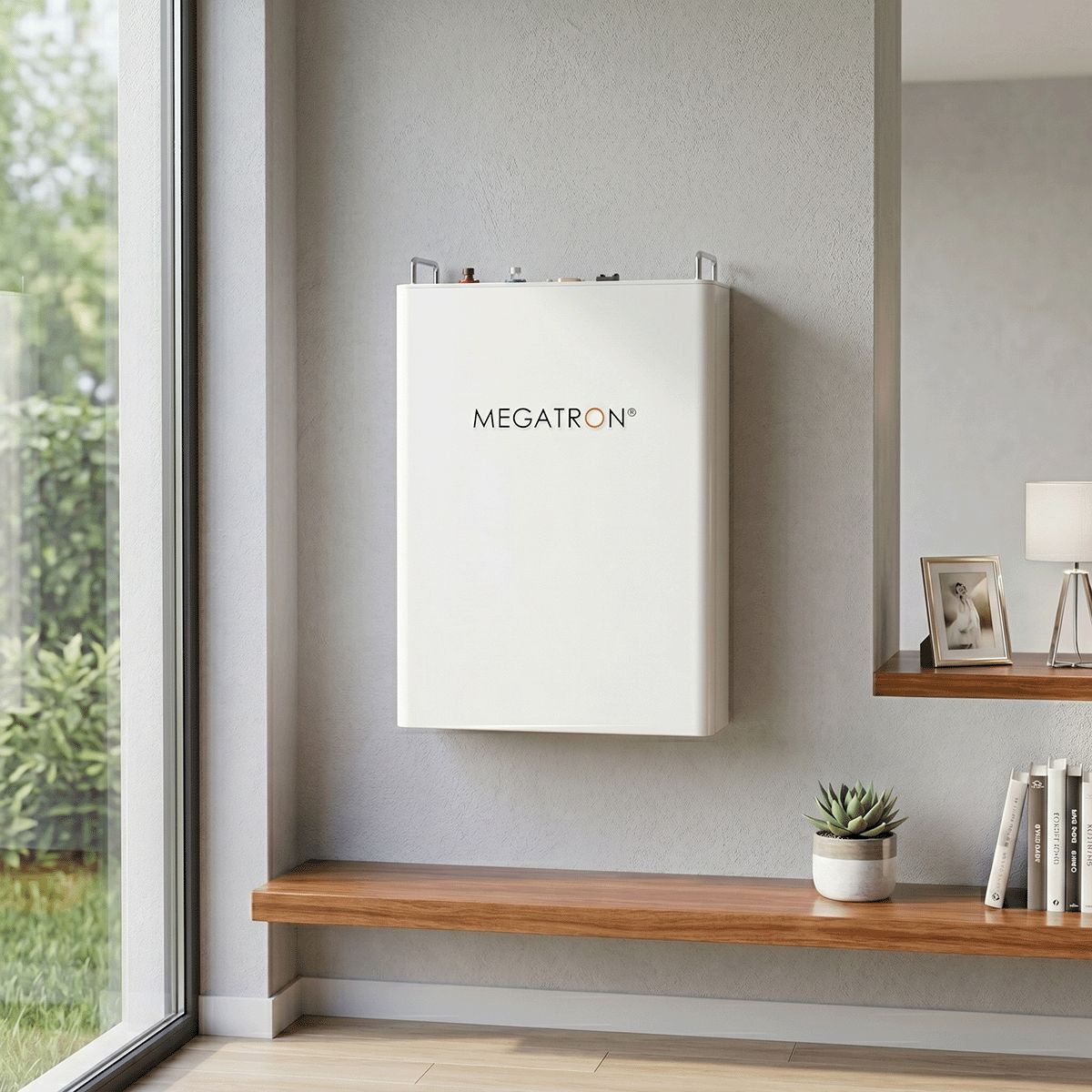

• Physical & Protection: Weighs 49 kg, measures 780 x 698 x 68 mm, with an IP55 dust and water protection rating. Designed for wall-mount or floor-standing installation.

• Certifications: CE, IEC62619, and UN38.3
